What Are Architectural Shadow Studies and Why Are They Important?


Designing architectural structures goes beyond aesthetics; architecture is a practice that involves thorough planning and analysis to achieve both form and function. A well-designed structure seamlessly integrates with the built environment and responds favorably to its elements.

Understanding solar orientation, sun path, and shadow analysis is crucial in making informed design choices for your upcoming construction project, this is especially true for highrises or other large developments. Thanks to technological advancements, we can now create realistic simulations of structures, accurately mapping their geographical location and analyzing how they interact with the sun's movement along the horizon at specific times and days of the year. Shadow studies, while sharing similarities with aerial rendering, can be considered a distinct and specialized form of rendering.

Shadow Study Services

Realspace offers high-quality shadow studies that provide a visually stunning and realistic representation of lighting scenarios. Our shadow analysis services, like our other architectural rendering offerings, deliver exceptional images at affordable prices. Explore more of our rendering services here, or contact us for further information on your next project. Below, you can find a basic example showcasing how we provide multiple lighting scenarios to help you obtain approval from regulatory bodies.

Solar Orientation

What is Solar Orientation?

Each site has a unique solar orientation. Solar orientation refers to the positioning of a building or space in relation to cardinal directions and, more importantly, the path of the sun. In simple terms, it indicates how your building faces the sun based on its actual geographic coordinates during a specific time of the year.

Why is Solar Orientation Important?

An in-depth study of your house or building's solar orientation can bring numerous advantages. Understanding how to leverage your architecture's form in relation to its solar orientation enables you to maximize the benefits derived from the sun's position at different times of the day and how it interacts with shadows.

Sun Path

What is a Sun Path?

The sun's path, also known as the day arc or sun path, refers to the arc-like trajectory that the Sun appears to follow across the sky from one sunrise to the next. It is influenced by the seasons and the daily rotation of planet Earth.

Mapping Out Your Sun Path

Using a sun path diagram, you can predict the amount of sunlight that will impact a specific building throughout the year. Stereographic sun path diagrams are used to estimate the solar azimuth and altitude for a given location. They are essential tools that help you anticipate the sun's influence on your site or building.

The use of stereographic sun path diagrams is crucial for mapping out your site's sun path. This enables you to assess the sun's location in relation to your building at different times of the day and various days of the year.

The purpose of a sun path diagram is to capture the most important solar information in a way that is easily understandable. A well-made sun path diagram immediately creates a visual impact, inviting you to study it and spend more time absorbing the information. A good diagram provides instant insight into the general pattern that the sun follows in a given place throughout the year.

Altitude and Azimuth

The sun rises in the east and sets in the west. Its position in the sky can be described by its altitude and azimuth (direction). Altitude represents how high or low the sun appears in the sky, with zero degrees indicating it's on the horizon and 90 degrees meaning it's directly overhead. Azimuth refers to where on the horizon the sun appears to be rising, measured relative to true north.

Altitude and Azimuth are expressed as numerical values in degrees, describing the precise position of the sun for a specific day and time of the year.

Summer Sun vs. Winter Sun

The summer sun is often located at a higher angle with respect to the ground's horizontal plane. In contrast, the winter sun moves at a lower angle. Understanding this difference is beneficial when designing and planning buildings in regions with both summer and winter seasons. By carefully analyzing your building's sun path, you can utilize various architectural elements to maximize heat gain during winter and minimize it during summer.


Shadow Study

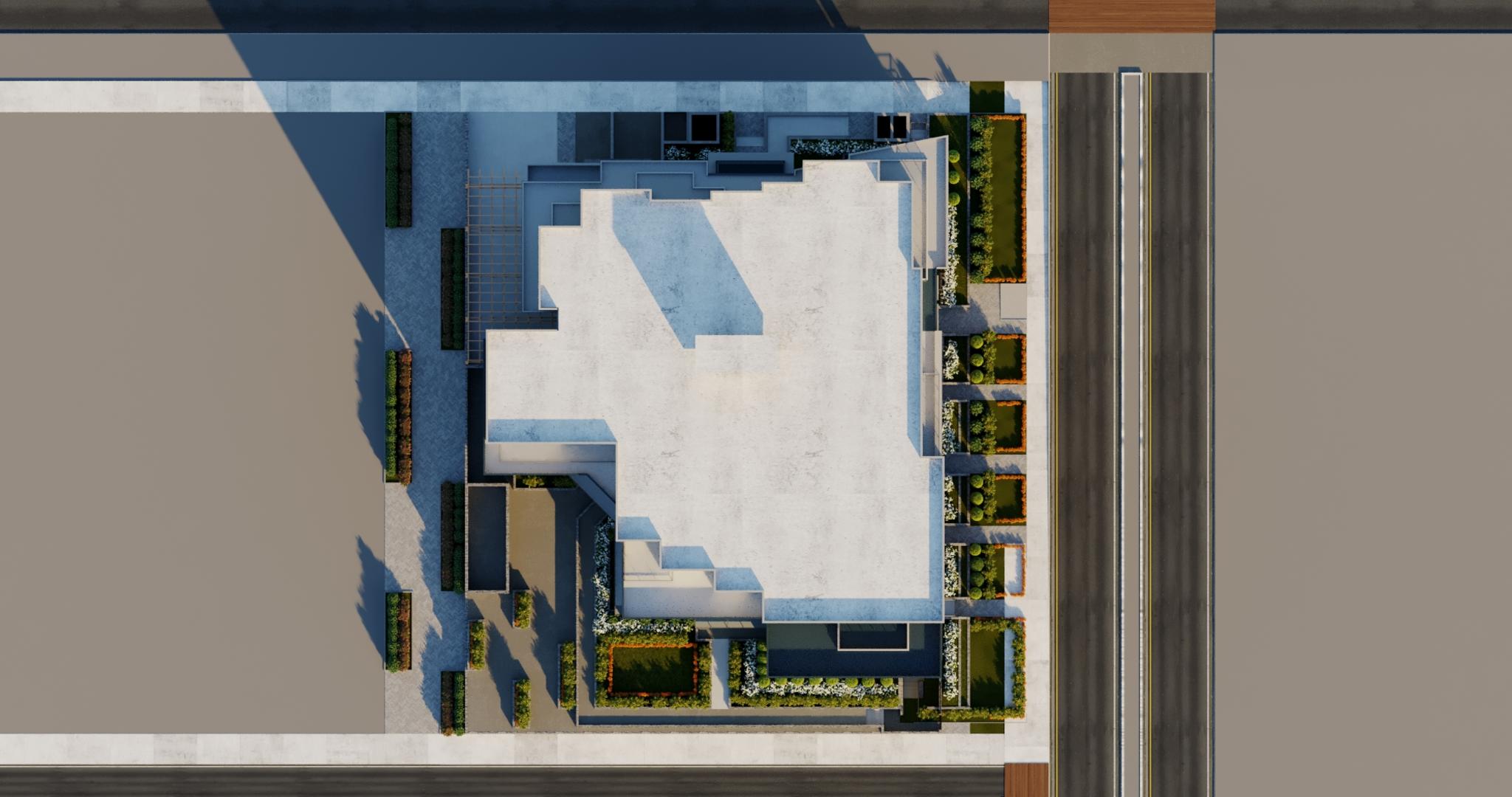

What are Architectural Shadow Studies?

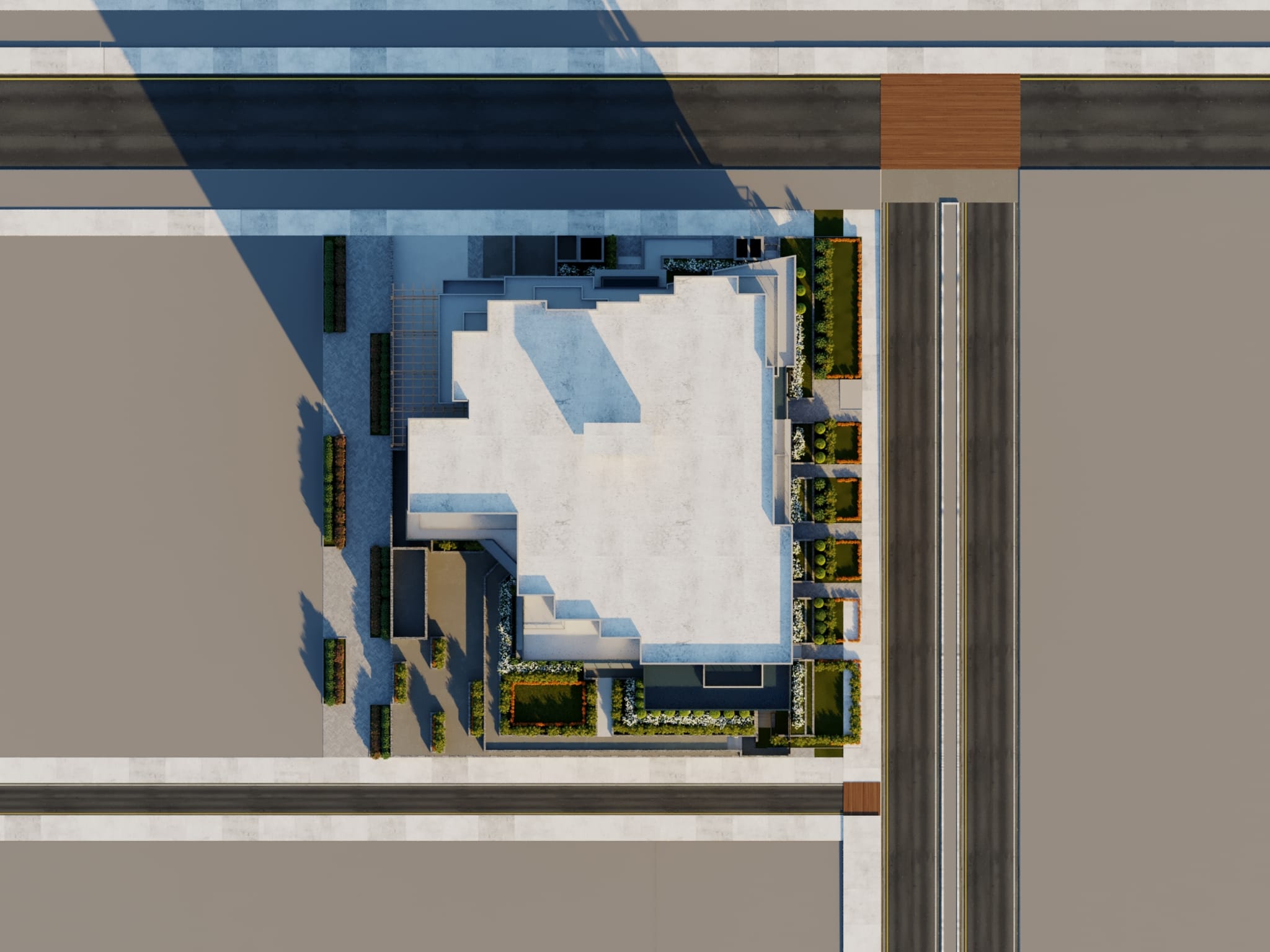

Architectural shadow studies depict how shadows move throughout the day. These studies involve creating shadow diagrams to visualize where shadows will fall and how they will change over time.

A shadow diagram presents a visual representation of how a proposed development would cast its shadow. It highlights shadowed areas in sensitive locations such as public spaces, communal amenity areas, traditional and arterial main streets, and residential private outdoor amenity areas. In addition to the shadow diagram, any potential impacts identified in the shadow analysis should be addressed.


Why are Shadow Studies Important and what are the benefits?

Solar orientation, sun path, and shadow diagrams are interrelated aspects of site analysis in architecture. Architecture goes beyond aesthetics, involving a thorough analysis of the built environment and its interaction with natural features. By analyzing the natural environment and its response to architecture, concepts such as solar orientation, sun path, and shadow diagrams come into play.


Shadow diagrams provide a visual representation that enables people to understand and appreciate the impact of sun path data on a structure and its surrounding environment. They accurately depict how the sun moves in relation to a building, helping designers make informed design choices.


1.) Identifying areas of year-round shadow

Areas that receive less sunlight tend to be cold and damp, creating conditions that promote the growth of mold and mildew. Without the harsh UV rays to inhibit these microorganisms, areas perpetually cast in shadow require frequent maintenance to prevent mold and mildew growth on surfaces.

Landscaped yards with year-round shadows often face challenges. Most grass species require sunlight for growth. Identifying areas affected by shadows helps in making informed decisions about the types of vegetation suitable for your landscaping project.

Understanding the location of shadows is crucial to identifying areas in a building that may remain damp and humid throughout the year. Dampness in rooms contributes to the development of "sick building syndrome." This knowledge helps make wise design choices that introduce natural ventilation in these cold and damp areas of the structure.


2.) Identifying areas of direct sunlight in your home

Preventing or maximizing heat gain is crucial when designing any structure. Through shadow and solar analysis, you can identify the parts of your house that receive the most sunlight. With this information, you can revise your plan or design accordingly to introduce measures that minimize or maximize heat gain in specific areas of your home.

Understanding how the summer and winter sun affect your building is a crucial aspect of planning. This knowledge can contribute significantly to your architectural design solutions, allowing you to minimize or maximize heat gain for the occupants' benefit.


3.) Identifying areas to avoid glass and glazing

Glass-clad facades are a popular and desirable design choice. However, without a good understanding of solar orientation, sun path, and shadow analysis, it can become challenging. One tip is to avoid using glass and glazing in areas that face the morning and hot afternoon sun. Positioning glass windows in shaded parts of your structure is more desirable as it maximizes natural lighting and illumination while preventing potential heat gain.


4.) Properly orienting your rooms

Knowing which sides of your house are exposed to the sun can help you properly orient your rooms. In areas directly facing the sun, you can incorporate various architectural solutions such as thicker insulation and narrower windows to combat heat gain.

On the other hand, rooms that are oriented towards the shadow of your building can take advantage of the cool air and absence of direct sunlight.


5.) Creating a sustainable and green home

Enhancing a building's energy and environmental performance can be achieved through passive solar design and ensuring access to sunlight and a pleasant microclimate. Analyzing concepts of sun path and shadows can help you plan a passive building with lower carbon emissions. Artificial cooling and heating methods create a high energy demand in structures, but by minimizing their use, you contribute to the Earth's sustainability efforts.


6.) Positioning your solar panels

Solar panels are a significant investment that can greatly impact your project's success. Positioning solar panels correctly can be challenging, as it depends on your building's solar orientation.

Knowing the location of shadows is crucial in order to avoid placing solar panels in areas where they won't be effective. To maximize their efficiency, it's important to orient them towards regions that receive ample sunlight. This can be achieved by mapping your building's sun path and analyzing its shadows. It's also essential to consider the surrounding environment, including adjacent structures, trees, and major landforms, as their shadows can affect the panels' efficacy.


7.) Analyzing your building's impact on the surrounding environment

Numerous case studies highlight the repercussions of neglecting shadow analysis, leading to costly legal disputes. The presence of a new building can significantly alter the microclimate of an area, resulting in overcast shadows or excessive glare. By analyzing how your structure responds to various environmental stimuli, you can avoid potential legal issues in the future.


8.) Requirement for most large development projects

In many cities and townships, developers are mandated to submit a shadow analysis of their projects, whether it's a skyscraper, mid-rise building, or planned unit development. Conducting a shadow analysis helps identify possible overshadowing scenarios even before the project is constructed.


9.) Understanding how your building appears at different times of the day

Relying solely on paint swatches is insufficient. Lighting plays a crucial role in the vibrancy of colors. Your house facade may appear differently at noon compared to sundown. By mapping out the sun path and creating a shadow analysis, you can make informed decisions regarding paint colors and materials for both the interior and exterior of your structure.


10.) Choosing the best materials for your project

Understanding how the sun moves in relation to your building enables you to make wise decisions regarding the materials used. For example, avoid using brick or other porous materials as cladding in shaded areas, as they may encourage moss growth. Similarly, highly reflective materials should be avoided in areas directly exposed to the sun. Making informed material choices extends beyond aesthetics and contributes to functionality and maintenance. Analyzing your site helps you make the best decisions for cladding and other architectural materials.



In conclusion, shadow analysis plays a vital role in the design and planning of architectural structures. It goes beyond aesthetics and involves a thorough understanding of solar orientation, sun path, and shadow diagrams. By incorporating these elements into the design process, architects and developers can make informed decisions that maximize the benefits derived from the sun's position and interaction with shadows.

Technological advancements have made it possible to create realistic simulations and visual representations of lighting scenarios through shadow studies. Realspace offers high-quality shadow analysis services that provide accurate and visually stunning images at affordable prices. These services assist in obtaining approval from regulatory bodies and help clients make informed design choices for their projects.

Solar orientation determines how a building faces the sun based on its geographical location, while the sun's path illustrates its trajectory across the sky throughout the year. Mapping out the sun path enables architects to anticipate the sun's influence on a site or building, considering factors such as heat gain and natural lighting.

Shadow studies depict how shadows move throughout the day, providing valuable information about areas of year-round shadow and areas exposed to direct sunlight. By identifying these areas, architects can make design choices that address issues such as mold and mildew growth, landscaping challenges, and the need for natural ventilation.

Properly orienting rooms, creating sustainable and green homes, positioning solar panels, and analyzing a building's impact on the surrounding environment are all benefits derived from shadow analysis. Additionally, shadow analysis is often required for large development projects and helps architects understand how a building appears at different times of the day and choose the best materials for the project.

Incorporating shadow analysis into the design process ensures that architectural structures not only harmonize with the built environment but also optimize functionality and environmental performance. By embracing the principles of solar orientation, sun path, and shadow analysis, architects and developers can create spaces that are aesthetically pleasing, environmentally sustainable, and responsive to natural elements.
